利用gganimate可视化R-Ladies发展情况

简介这篇博客主要基于d4tagirl（https://d4tagirl.com/2017/05/how-to-plot-animated-maps-with-gganimate），稍微有所修改。
数据加载library(pacman)p_load(tidyverse, gganomate, maps, ggthemes)rladies <- read_csv(url(“https://raw.githubusercontent.com/d4tagirl/R-Ladies-growth-maps/master/rladies.csv”))%>%select(-1)head(rladies)
## # A tibble: 6 x 7##   screen_name     location     created_at followers age_days     lon   lat##                                   ## 1 RLadiesSF       San Francis~ 2012-10-15       916     1673 -122     37.8## 2 RLadiesNYC      New York     2016-09-01       309      256 – 74.0   40.7## 3 RLadiesIstanbul stanbul, T~ 2016-09-06       436      251   29.0   41.0+0130>## 4 RLadiesBCN      Barcelona, ~ 2016-10-11       377      216    2.17  41.4## 5 RLadiesColumbus Columbus, OH 2016-10-04       179      223 – 83.0   40.0## 6 RLadiesBoston   Boston, MA   2016-09-06       259      251 – 71.1   42.4

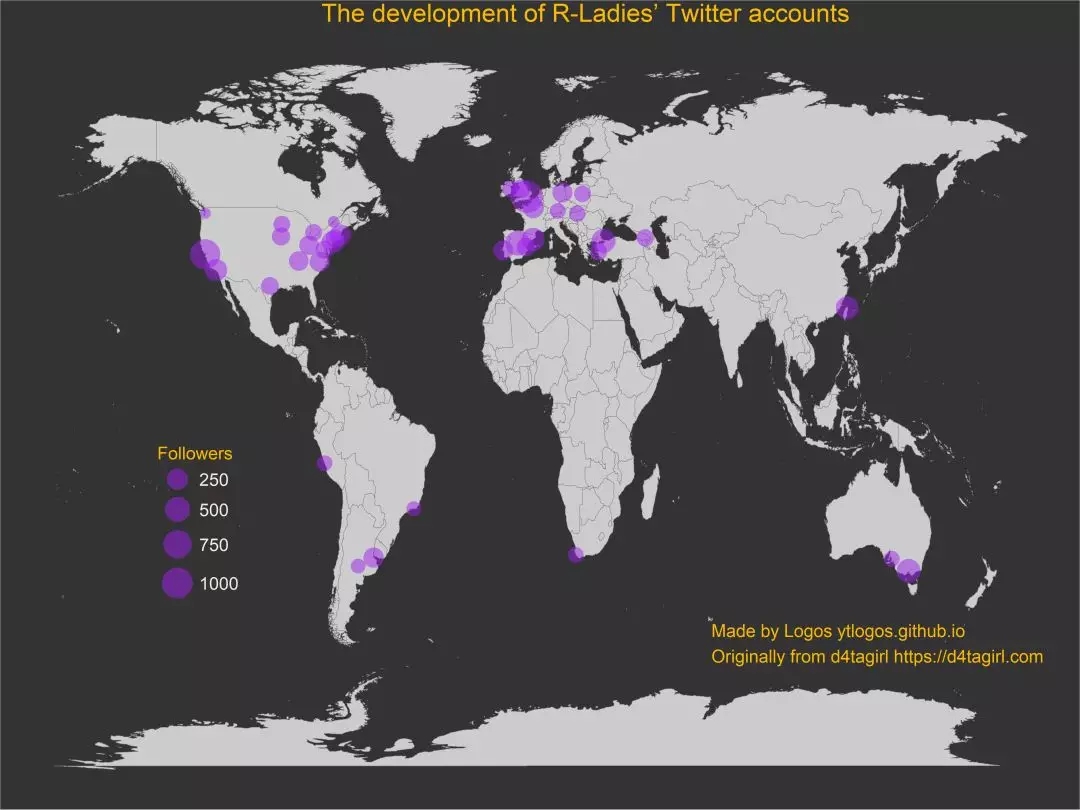

可视化主要是根据地理位置信息映射到地图上fig.height=18}ggplot()+borders(“world”, color=”gray85″, fill=”grey80″)+geom_point(data = rladies, aes(lon, lat, size=followers), color=”purple”, alpha=0.5)+scale_size_continuous(range = c(8, 24), breaks = c(250, 500, 750, 1000))+labs(size=”Followers”, title=”                                             The development of R-Ladies’ Twitter accounts”,x=NULL,y=NULL)+theme(text = element_text(family = “Times New Roman”, color = “#EEEEEE”),plot.title = element_text(size=40,color = “#f9ba00″),plot.subtitle = element_text(size=14),axis.ticks = element_blank(),axis.text = element_blank(),panel.grid = element_blank(),panel.background = element_rect(fill=”#333333”),plot.background = element_rect(fill = “#333333”),legend.position = c(0.18,0.36),legend.background = element_blank(),legend.key = element_blank(),legend.text = element_text(size = 28),legend.title = element_text(size=28, color = “#f9ba00”))+annotate(geom = “text”,label=”Made by Logos ytlogos.github.io\nOriginally from d4tagirl https://d4tagirl.com”,x=70, y=-55, size=10, family=”Helvetica Black”, color=”#f9ba00″, hjust=”left”)

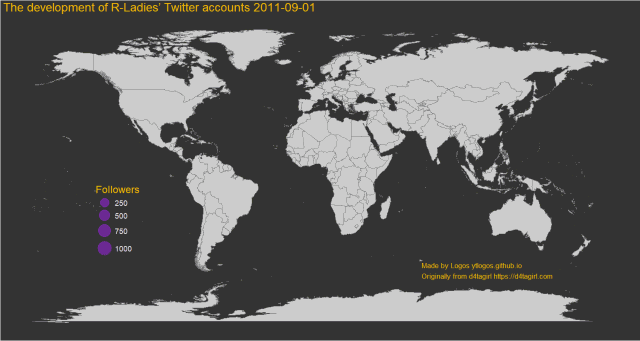

动画展示为了利用gganimate进行动态展示，需要构建一个映射变量：时间。同时为了使得可视化开始和结尾呈现的是空白，又构建了两个空白图层   ghost_points_ini <- tibble(created_at=as.Date(“2011-09-01”), followers=0, lon=0, lat=0)ghost_points_fin <- tibble(created_at=seq(as.Date(“2017-05-16”), as.Date(“2017-05-30″),by=”days”), followers=0, lon=0,lat=0)
添加frame映射map <- ggplot()+borders(“world”, color=”gray85″, fill=”grey80″)+geom_point(data = rladies, aes(lon, lat, size=followers, frame=created_at, cumulative=TRUE), color=”purple”, alpha=0.5)+scale_size_continuous(range = c(4, 16), breaks = c(250, 500, 750, 1000))+geom_point(data = ghost_points_ini, aes(lon, lat, size=followers, frame=created_at, cumulative=TRUE), alpha=0)+geom_point(data = ghost_points_fin, aes(lon, lat, size=followers, frame=created_at, cumulative=TRUE), alpha=0)+labs(size=”Followers”, title=”The development of R-Ladies’ Twitter accounts”,x=NULL,y=NULL)+theme(text = element_text(family = “Times New Roman”, color = “#EEEEEE”),plot.title = element_text(size=28, color = “#f9ba00″),plot.subtitle = element_text(size=14),axis.ticks = element_blank(),axis.text = element_blank(),panel.grid = element_blank(),panel.background = element_rect(fill=”#333333”),plot.background = element_rect(fill = “#333333”),legend.position = c(0.18,0.36),legend.background = element_blank(),legend.key = element_blank(),legend.text = element_text(size = 18),legend.title = element_text(size=24, color = “#f9ba00”))+annotate(geom = “text”,label=”Made by Logos ytlogos.github.io\nOriginally from d4tagirl https://d4tagirl.com”,x=70, y=-55, size=6, family=”Helvetica Black”, color=”#f9ba00″, hjust=”left”)animation::ani.options(interval=0.15, ani.width=1500, ani.height=800, units=”in”)gganimate::gganimate(map, filename = “d4tagirlmap.gif”) SessionInfosessionInfo()## R version 3.4.3 (2017-11-30)## Platform: x86_64-w64-mingw32/x64 (64-bit)## Running under: Windows 10 x64 (build 16299)#### Matrix products: default#### locale:## [1] LC_COLLATE=Chinese (Simplified)_China.936## [2] LC_CTYPE=Chinese (Simplified)_China.936## [3] LC_MONETARY=Chinese (Simplified)_China.936## [4] LC_NUMERIC=C## [5] LC_TIME=Chinese (Simplified)_China.936#### attached base packages:## [1] stats     graphics  grDevices utils     datasets  methods   base#### other attached packages:##  [1] ggthemes_3.4.0       maps_3.2.0           BiocInstaller_1.28.0##  [4] forcats_0.2.0        stringr_1.2.0        dplyr_0.7.4##  [7] purrr_0.2.4          readr_1.1.1          tidyr_0.8.0## [10] tibble_1.4.2         ggplot2_2.2.1.9000   tidyverse_1.2.1## [13] pacman_0.4.6#### loaded via a namespace (and not attached):##  [1] reshape2_1.4.3    haven_1.1.1       lattice_0.20-35##  [4] colorspace_1.3-2  htmltools_0.3.6   yaml_2.1.16##  [7] utf8_1.1.3        rlang_0.1.6       pillar_1.1.0## [10] foreign_0.8-69    glue_1.2.0        modelr_0.1.1## [13] readxl_1.0.0      bindrcpp_0.2      bindr_0.1## [16] plyr_1.8.4        munsell_0.4.3     gtable_0.2.0## [19] cellranger_1.1.0  rvest_0.3.2       psych_1.7.8## [22] evaluate_0.10.1   labeling_0.3      knitr_1.19## [25] parallel_3.4.3    broom_0.4.3       Rcpp_0.12.15## [28] scales_0.5.0.9000 backports_1.1.2   jsonlite_1.5## [31] mnormt_1.5-5      hms_0.4.1         digest_0.6.15## [34] stringi_1.1.6     grid_3.4.3        rprojroot_1.3-2## [37] cli_1.0.0         tools_3.4.3       magrittr_1.5## [40] lazyeval_0.2.1    crayon_1.3.4      pkgconfig_2.0.1## [43] xml2_1.2.0        lubridate_1.7.1   assertthat_0.2.0## [46] rmarkdown_1.8     httr_1.3.1        rstudioapi_0.7## [49] R6_2.2.2          nlme_3.1-131      compiler_3.4.3
