scatterplot3d:一个特立独行的R包

scatterplot3d是一个力求在3D空间展示多维数据的R包，在这个包里只含有一个函数scatterplot3d()，这一点上可谓是特立独行。scatterplot3d()的用法如下：

scatterplot3d(x, y=NULL, z=NULL, color=par(“col”), pch=NULL,
    main=NULL, sub=NULL, xlim=NULL, ylim=NULL, zlim=NULL,
    xlab=NULL, ylab=NULL, zlab=NULL, scale.y=1, angle=40,
    axis=TRUE, tick.marks=TRUE, label.tick.marks=TRUE,
    x.ticklabs=NULL, y.ticklabs=NULL, z.ticklabs=NULL,
    y.margin.add=0, grid=TRUE, box=TRUE, lab=par(“lab”),
    lab.z=mean(lab[1:2]), type=”p”, highlight.3d=FALSE,
    mar=c(5,3,4,3)+0.1, col.axis=par(“col.axis”),
    col.grid=”grey”, col.lab=par(“col.lab”),
    cex.symbols=par(“cex”), cex.axis=0.8 * par(“cex.axis”),
    cex.lab=par(“cex.lab”), font.axis=par(“font.axis”),
    font.lab=par(“font.lab”), lty.axis=par(“lty”),
    lty.grid=par(“lty”), lty.hide=NULL, lty.hplot=par(“lty”),
    log=””, …)

这个函数的参数多到让人目眩凌乱，下面是几个例子。

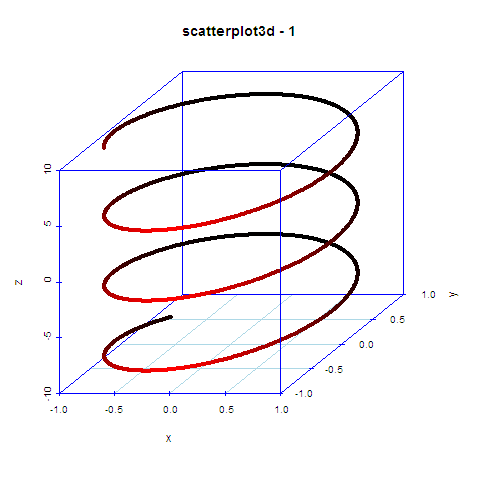

首先，用scatterplot3d()画一个螺旋线，

> library(scatterplot3d)
> z <- seq(-10, 10, 0.01)；x <- cos(z)； y <- sin(z)
> scatterplot3d(x, y, z, highlight.3d=TRUE, col.axis=”blue”,col.grid=”lightblue”, +main=”scatterplot3d – 1″, pch=20)

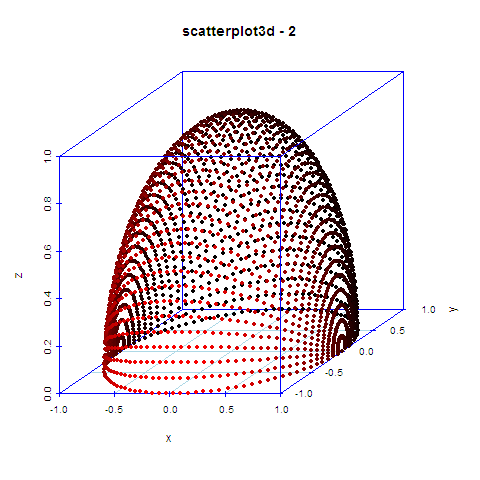

再画半椭圆，

> temp<- seq(-pi, 0, length = 50)
> x <- c(rep(1, 50) %*% t(cos(temp)))
> y <- c(cos(temp) %*% t(sin(temp)))
> z <- c(sin(temp) %*% t(sin(temp)))
> scatterplot3d(x, y, z, highlight.3d=TRUE,col.axis=”blue”, col.grid=”lightblue”,
+ main=”scatterplot3d – 2″, pch=20)

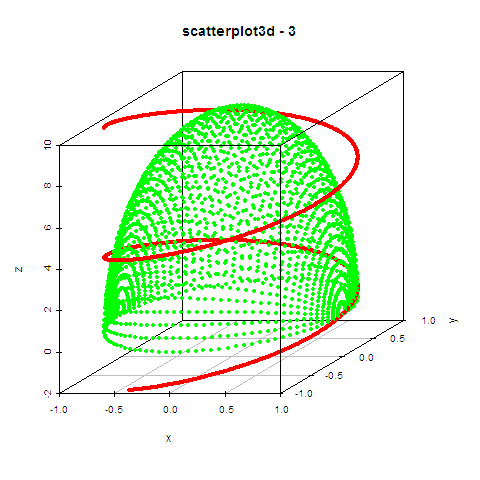

将两者团结，很像龙盘柱，有点酷，

>   x <- c(rep(1, 50) %*% t(cos(temp)))

>   y <- c(cos(temp) %*% t(sin(temp)))

>   z <- 10 * c(sin(temp) %*% t(sin(temp)))

>   color <- rep(“green”, length(x))

>   temp <- seq(-10, 10, 0.01)

>   x <- c(x, cos(temp))

>   y <- c(y, sin(temp))

>   z <- c(z, temp)

>   color <- c(color, rep(“red”, length(temp)))

>   scatterplot3d(x, y, z, color, pch=20, zlim=c(-2, 10),

+       main=”scatterplot3d – 3″)

将两者团结，很像龙盘柱，有点酷，

>   x <- c(rep(1, 50) %*% t(cos(temp)))

>   y <- c(cos(temp) %*% t(sin(temp)))

>   z <- 10 * c(sin(temp) %*% t(sin(temp)))

>   color <- rep(“green”, length(x))

>   temp <- seq(-10, 10, 0.01)

>   x <- c(x, cos(temp))

>   y <- c(y, sin(temp))

>   z <- c(z, temp)

>   color <- c(color, rep(“red”, length(temp)))

>   scatterplot3d(x, y, z, color, pch=20, zlim=c(-2, 10),

+       main=”scatterplot3d – 3″)

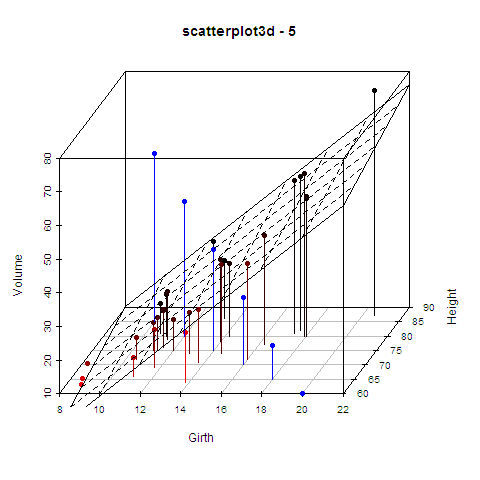

上面的可以说都不是很实用，下面看一下二维回归平面图，

 >   data(trees)

>   s3d <- scatterplot3d(trees, type=”h”, highlight.3d=TRUE,

+       angle=55, scale.y=0.7, pch=16, main=”scatterplot3d – 5″)

>   s3d$points3d(seq(10,20,2), seq(85,60,-5), seq(60,10,-10),

+       col=”blue”, type=”h”, pch=16)

 # 画回归平面

>   attach(trees)

The following object(s) are masked from ‘trees (position 3)’:
    Girth, Height, Volume

>   my.lm <- lm(Volume ~ Girth + Height)

>   s3d$plane3d(my.lm, lty.box = “solid”)

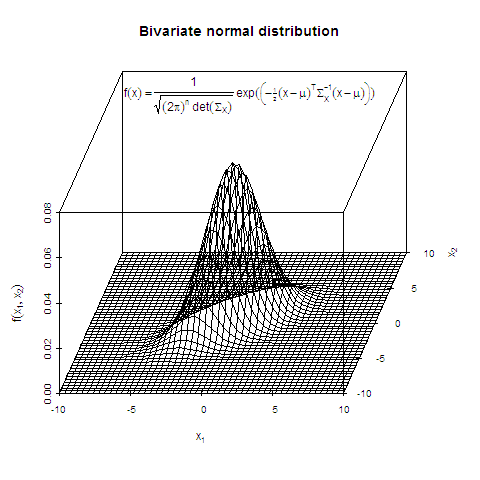

我瞥见有许多帖子索要二维正态漫衍的示意图，这里画一个，

> library(mvtnorm)
> x1 <- seq(-10, 10, length = 51)
> x2 <- seq(-10, 10, length = 51)
> dens <- matrix(dmvnorm(expand.grid(x1,x2),sigma=rbind(c(3,2),c(2,3))),ncol=length(x1))
> s3d<-scatterplot3d(x1,x2,seq(min(dens),max(dens),length=length(x1)),
+ type=”n”,grid=FALSE,angle = 70,
+ zlab=expression(f(x[1],x[2])),
+ xlab=expression(x[1]),ylab=expression(x[2]),
+ main=”Bivariate normal distribution”)
> text(s3d$xyz.convert(-1,10,0.07),
+labels=expression(f(x)==frac(1,sqrt((2*pi)^n*phantom(“.”)*det(Sigma[X])))*phantom(“.”)*exp(bgroup(“(“,-scriptstyle(frac(1,2)*phantom(“.”))*(x-mu)^T*Sigma[X]^-1*(x-mu),”)”))))
> for(i in length(x1):1)
+ s3d$points3d(rep(x1[i], length(x2)), x2, dens[i,], type = “l”)
> for(i in length(x2):1)
+ s3d$points3d(x1, rep(x2[i], length(x1)), dens[,i], type = “l”)

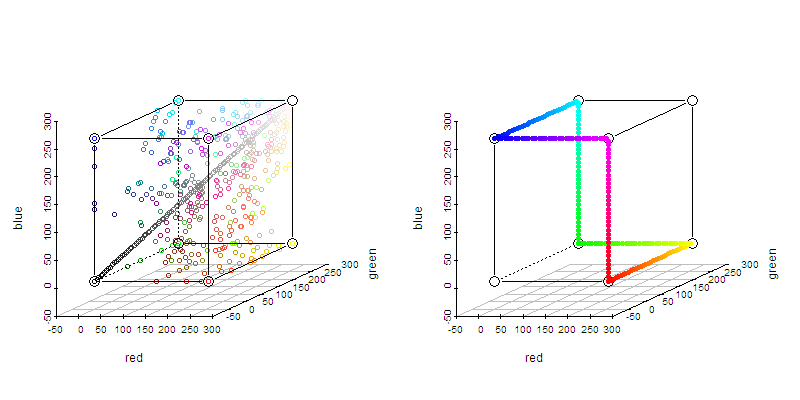

之所以画下面这个，完全是因为我贪图色彩，

> cubedraw <- function(res3d, min = 0, max = 255, cex = 2, text. = FALSE)

+   {

+     cube01 <- rbind(c(0,0,1), 0, c(1,0,0), c(1,1,0), 1, c(0,1,1), # < 6 outer

+                     c(1,0,1), c(0,1,0))

+     cub <- min + (max-min)* cube01

+     res3d$points3d(cub[c(1:6,1,7,3,7,5) ,], cex = cex, type = ‘b’, lty = 1)

+     res3d$points3d(cub[c(2,8,4,8,6),     ], cex = cex, type = ‘b’, lty = 3)

+     if(text.)

+         text(res3d$xyz.convert(cub), labels=1:nrow(cub), col=’tomato’, cex=2)

+   }

>   cc <- colors()

>   crgb <- t(col2rgb(cc))

>   par(xpd = TRUE)

>   rr <- scatterplot3d(crgb, color = cc, box = FALSE, angle = 24,

+       xlim = c(-50, 300), ylim = c(-50, 300), zlim = c(-50, 300))

>   cubedraw(rr)

>   rbc <- rainbow(201)

>   Rrb <- t(col2rgb(rbc))

>   rR <- scatterplot3d(Rrb, color = rbc, box = FALSE, angle = 24,

+       xlim = c(-50, 300), ylim = c(-50, 300), zlim = c(-50, 300))

>   cubedraw(rR)

>   rR$points3d(Rrb, col = rbc, pch = 16)
